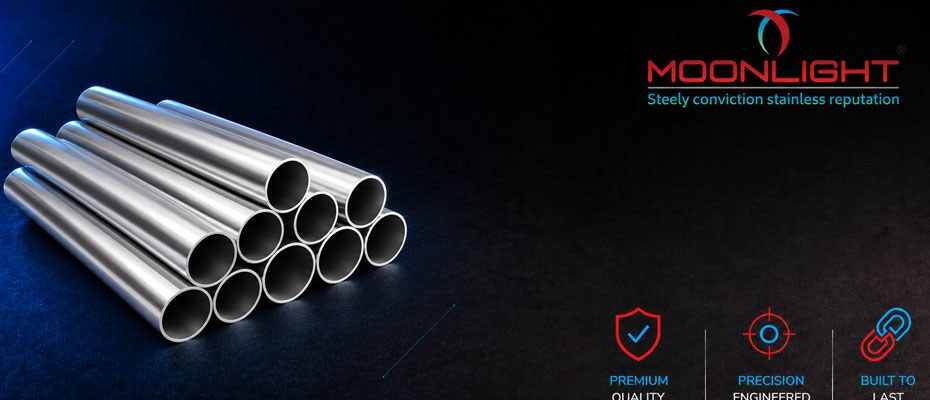

MLTI Private Limited (Moonlight Tube Industries) manufactures stainless steel 904L pipe at our facility based in Gujarat, India, and has been producing stainless steel pipe since 2008 with a plant capacity of approximately 8,000 MT per year. We produce 904L stainless steel pipe to ASTM A312 / ASME SA-312 in UNS N08904, also designated as AISI 904L and Type 904L. This superaustenitic stainless steel contains 23.0 to 28.0% nickel, 19.0 to 23.0% chromium, 4.0 to 5.0% molybdenum and 1.00 to 2.00% copper, with carbon limited to 0.020% maximum. The high nickel, molybdenum and copper content provides enhanced resistance to reducing acids and aggressive chloride-containing environments, making high-performance 904L stainless steel pipe suitable for selected demanding chemical and process applications. ASTM A312 specifies a minimum tensile strength of 490 MPa, a yield strength of 215 MPa, and an elongation of 35% after solution annealing.
Our SS 904L pipe range covers 1/8" NB to 10" NB in SCH 5S, SCH 10S, SCH 20S, SCH 40S and SCH 80S. Schedules 5S, 10S, 40S and 80S follow ASME B36.19M dimensions; SCH 20S is supplied to MLTI standard wall thicknesses, as ASME B36.19M does not define Schedule 20S. We supply 904L seamless pipe configurations designed without seams for critical high-pressure environments. As experienced 904L stainless steel pipe suppliers and exporters, MLTI supports project requirements with controlled manufacturing, inspection, and certification. For alternative project requirements, our 904L welded pipe versions are formed from steel strips and longitudinally welded via ERW. These serve chemical processing, acid production, seawater cooling, pulp and paper, and flue gas desulphurisation systems. Each applicable pipe undergoes hydrostatic or specified non-destructive testing before dispatch. We provide in-house PMI, tensile, hardness and dimensional inspection, together with EN 10204 3.1 mill test certification. MLTI holds ISO 14001 and 45001 certifications with BIS, EIL, IBR, and PED 2014/68/EU approvals.
This table outlines key procurement and engineering specifications for SS 904L pipes, covering standards, dimensions, manufacturing, and condition.
| Parameter | Value |
|---|---|
| Applicable Standard | ASTM A312 / ASME SA-312: Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes |
| Size range | 1/8" NB to 10" NB |
| Schedule | SCH 5S, SCH 10S, SCH 20S, SCH 40S, SCH 80S |
| Wall thickness | 1.24 mm to 12.70 mm, depending on bore and schedule |
| Manufacturing route | Seamless, welded (ERW) |
| Section profile | Round follows ASME B36.19M; square and rectangular use custom specifications. |
| Supply condition | Solution annealed at 1100°C minimum, water quenched or equally rapidly cooled |
| Surface | Free of scale in accordance with SA-312; additional finishing to purchase order |
| Length | Single random, double random and cut lengths |
| End type | Plain end; bevelled to order |
The chemical composition of 904L stainless steel pipe provides its resistance to reducing acids and contributes to its performance in chloride-containing environments. The element limits specified for UNS N08904 pipe under SA-312 are given below in weight percentage.
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.020 max |
| Manganese (Mn) | 2.00 max |
| Phosphorus (P) | 0.040 max |
| Sulphur (S) | 0.030 max |
| Silicon (Si) | 1.00 max |
| Chromium (Cr) | 19.0 to 23.0 |
| Nickel (Ni) | 23.0 to 28.0 |
| Molybdenum (Mo) | 4.0 to 5.0 |
| Copper (Cu) | 1.00 to 2.00 |
| Nitrogen (N) | 0.10 max |
| Iron (Fe) | Balance |
The following mechanical properties apply to solution-annealed SS 904L pipe and are specified under ASTM A312, with testing performed according to applicable ASTM methods.
| Property | Requirement |
|---|---|
| Tensile strength, min | 490 MPa (71 ksi) |
| Yield strength, 0.2% offset, min | 215 MPa (31 ksi) |
| Elongation in 50 mm, min, longitudinal | 35% |
| Elongation in 50 mm, min, transverse | 25% |
The following table outlines the main international standard designations and material equivalent codes used globally for AISI 904L pipes.
| Standard | Designation |
|---|---|
| UNS (USA) | UNS N08904 |
| EN / Werkstoff (Europe) | 1.4539 / X1NiCrMoCu25-20-5 |
| JIS (Japan) | SUS 890L |
| BS (UK) | 904S13 |
| AFNOR (France) | Z2 NCDU 25-20 |
Alloy 904L pipe is available in different manufacturing routes and section profiles. The manufacturing method affects production characteristics and pressure-service suitability, while the section profile determines the dimensional configuration.
904L seamless pipe is manufactured from a solid billet that is pierced and subsequently reduced to the required dimensions without a longitudinal welded seam. This form is used where seamless construction is specified for pressure piping and chemical processing applications.
Stainless Steel 904L welded pipes (ERW) are manufactured by precision-shaping stainless steel strips into cylinders. Edges are fused securely using high-frequency electrical resistance heating and intense mechanical pressure, creating a strong longitudinal seam without the addition of any filler metal.
Round pipe is the principal configuration covered by ASTM A312 and ASME B36.19M. Our round 904L pipe range extends from 1/8" NB to 10" NB across the schedules listed below.
Square
904L square pipe is manufactured to specified outside dimensions and wall thickness rather than ASME B36.19M pipe schedules, as B36.19M does not define square pipe dimensions. It is used for fabricated structures and equipment supports in corrosive environments.
Rectangular
904L rectangular pipe is manufactured according to specified width, height and wall thickness. The rectangular profile is suitable for fabricated frames, supports and equipment structures where the section geometry is specified by the application.
Our 904L stainless steel pipe sizes range from 1/8" NB to 10" NB across five schedules. The table below provides nominal bore, outside diameter and wall thickness. Schedules 5S, 10S, 40S and 80S follow ASME B36.19M; SCH 20S is supplied to MLTI standard wall thicknesses, as ASME B36.19M does not define Schedule 20S.
| Nominal Bore (mm) | Inch | Outside Diameter (mm) | Sch-5S (mm) | Sch-10S (mm) | Sch-20S (mm) | Sch-40S (mm) | Sch-80S (mm) |
|---|---|---|---|---|---|---|---|
| 6 | 1/8 | 1.24 | 1.24 | 1.50 | 1.73 | 2.41 | |
| 8 | 1/4 | 1.24 | 1.65 | 2.00 | 2.24 | 3.02 | |
| 10 | 3/8 | 1.24 | 1.65 | 2.00 | 2.31 | 3.20 | |
| 15 | 1/2 | 21.34 | 1.65 | 2.11 | 2.30 | 2.77 | 3.75 |
| 20 | 3/4 | 26.70 | 1.65 | 2.11 | 2.55 | 2.87 | 3.91 |
| 25 | 1 | 33.40 | 1.65 | 2.77 | 3.00 | 3.38 | 4.55 |
| 32 | 1 1/4 | 42.20 | 1.65 | 2.77 | 3.00 | 3.56 | 4.85 |
| 40 | 1 1/2 | 48.30 | 1.65 | 2.77 | 3.00 | 3.68 | 5.08 |
| 50 | 2 | 60.30 | 1.65 | 2.77 | 3.00 | 3.91 | 5.54 |
| 65 | 2 1/2 | 73.00 | 2.11 | 3.05 | 4.00 | 5.16 | 7.01 |
| 80 | 3 | 88.90 | 2.11 | 3.05 | 4.00 | 5.49 | 7.62 |
| 100 | 4 | 114.30 | 2.11 | 3.05 | 4.50 | 6.02 | 8.56 |
| 125 | 5 | 141.30 | 2.77 | 3.40 | 5.00 | 6.55 | 9.53 |
| 150 | 6 | 168.30 | 2.77 | 3.40 | 6.35 | 7.11 | 10.97 |
| 200 | 8 | 219.10 | 2.77 | 3.76 | 6.35 | 8.18 | 12.70 |
| 250 | 10 | 273.10 | 3.40 | 4.19 | 6.35 | 9.27 | 12.70 |
This chart outlines nominal sizes, schedule ratings, and corresponding unit weights (kg/m) to assist with structural loading and freight estimates for 904L pipes.
| Nominal Bore (mm) | Inch | Sch-5S Weight (kg/m) | Sch-10S Weight (kg/m) | Sch-20S Weight (kg/m) | Sch-40S Weight (kg/m) | Sch-80S Weight (kg/m) |
|---|---|---|---|---|---|---|
| 6 | 1/8 | 0.28 | 0.33 | 0.37 | 0.47 | |
| 8 | 1/4 | 0.49 | 0.58 | 0.631 | 0.80 | |
| 10 | 3/8 | 0.63 | 0.74 | 0.845 | 1.10 | |
| 15 | 1/2 | 0.80 | 1.00 | 1.08 | 1.27 | 1.62 |
| 20 | 3/4 | 1.03 | 1.28 | 1.52 | 1.68 | 2.20 |
| 25 | 1 | 1.30 | 2.09 | 1.94 | 2.50 | 3.24 |
| 32 | 1 1/4 | 1.65 | 2.70 | 2.90 | 3.38 | 4.47 |
| 40 | 1 1/2 | 1.91 | 3.11 | 3.35 | 4.05 | 5.41 |
| 50 | 2 | 2.40 | 3.93 | 4.24 | 5.44 | 7.48 |
| 65 | 2 1/2 | 3.69 | 5.26 | 6.81 | 8.63 | 11.40 |
| 80 | 3 | 4.51 | 6.45 | 8.37 | 11.30 | 15.20 |
| 100 | 4 | 5.84 | 8.36 | 12.18 | 16.07 | 22.30 |
| 125 | 5 | 9.47 | 11.57 | 16.81 | 21.80 | 31.97 |
| 150 | 6 | 11.32 | 13.84 | 25.36 | 28.30 | 42.70 |
| 200 | 8 | 14.79 | 19.96 | 33.31 | 42.60 | 64.60 |
| 250 | 10 | 22.63 | 27.78 | 41.77 | 60.50 | 96.00 |
Five industries account for a significant share of 904L stainless steel pipe applications because of the grade's resistance to aggressive chemical environments.
Sulphuric acid, phosphoric acid and acetic acid processing systems use 904L pipe where resistance to reducing acid environments is required. Fertiliser processing and acid transfer systems also specify the grade for selected services.
Refinery condensate systems, process lines and selected amine circuits use 904L where higher corrosion resistance than conventional austenitic grades is required. Its high nickel and molybdenum content contributes to resistance against chloride stress corrosion cracking.
Seawater cooling circuits, ballast piping and desalination plant take 904L pipe in selected duties. Molybdenum at 4 to 5% with a copper addition lifts pitting and crevice resistance above 316L, but warm chlorinated seawater usually needs a 6% molybdenum grade. Chloride level decides selection.
Bleach plant piping and selected acidic process lines use 904L pipe where resistance to aggressive process liquors is required. The alloy is suitable for applications involving acidic and chloride-containing process conditions within its service limits.
Flue gas desulphurisation absorbers, scrubber recirculation lines, quench systems and related piping can use 904L where acidic condensate and chloride exposure require enhanced corrosion resistance.
SA-312 requires solution annealing of 904L pipe at a minimum temperature of 1100°C, followed by water quenching or equally rapid cooling. The low carbon limit of 0.020% reduces the risk of chromium carbide precipitation during welding and helps maintain resistance to intergranular corrosion.
Material selection between 904L stainless steel pipe and duplex 2205 depends primarily on the service environment. Duplex 2205 provides high strength and strong resistance to chloride-containing environments, while 904L offers advantages in selected reducing acid services because of its copper, nickel and molybdenum content. The appropriate grade should therefore be selected according to the actual chemical composition, temperature, chloride concentration and corrosion conditions.
This section details the packaging, marking, certification, and export terms for shipping SS 904L pipes safely to buyers.
The 904L stainless steel pipe price in India may range from ₹450–₹800/kg, while international prices may range from US$11–17/kg. Actual pricing varies with nickel and molybdenum market conditions, pipe size, schedule, manufacturing route, quantity, testing and certification requirements.
Buyers return to Moonlight Tubes for certified material, approved grades and stock that ships on schedule. Every order is backed by documented quality, a wide size range and delivery commitments we hold to.
ASTM A312 / ASME SA-312 covers Stainless Steel 904L Pipe under UNS N08904, including seamless and welded pipe manufactured to the applicable requirements of the specification.
Yes. Stainless Steel 904L Pipe can be welded using conventional arc welding processes such as TIG, MIG and SMAW. Matching 904L Filler metals such as AWS ER385 are commonly used. Preheating and post-weld heat treatment are generally not required for standard fabrication, subject to the applicable welding procedure.
When welding 904L Pipe to 316L Pipe, filler metal selection should account for the corrosion resistance required from the completed joint. Higher-alloyed fillers such as 904L / ER385 or suitable nickel-based alloys may be specified depending on the service environment and approved welding procedure.
904L provides good corrosion resistance but is not normally selected for continuous high-temperature service. For service above approximately 400°C, the complete temperature, stress and corrosion requirements should be evaluated before selecting 904L.
No. Solution-annealed 904L Stainless Steel Pipe is essentially non-magnetic because it has a fully austenitic microstructure. Heavy cold working can alter its magnetic response, so the statement that it remains completely non-magnetic under all conditions should not be applied to heavily cold-worked material.
Our 904L Stainless Steel Pipe sizes range from 1/8" NB to 10" NB, with outside diameters from 10.3 mm to 273.1 mm across the listed schedules. SCH 5S, 10S, 20S, 40S and 80S are included in the standard range.
Yes. MLTI exports Stainless Steel 904L Pipe to international markets and can arrange FOB or CFR shipments with export packaging and EN 10204 3.1 material test certificates. Brazil, Turkey, Vietnam and European markets are among the export destinations served.
