SS 310 Seamless Pipe
Stainless steel 310 seamless pipe is pierced from a solid billet and drawn to size, so there's no weld line in the wall. We produce 310 Seamless Pipe across the full NB range.
Stainless Steel 310 Pipe Manufacturer in India
MLTI Private Limited (Moonlight Tube Industries) is a 310 stainless steel pipe manufacturer, supplier and exporter based in India since 2008. We produce stainless steel pipe and have an annual capacity of approximately 8,000 MT. Our Stainless Steel 310 Pipe is an austenitic 25Cr-20Ni product supplied to ASTM A312 / ASME SA-312, with dimensions to ASME B36.19M. The grade carries 24.0-26.0% chromium and 19.0–22.0% nickel, and that chromium level maintains an adherent oxide film in continuous high-temperature service.
Carbon is capped at 0.25% for UNS S31000 and 0.08% for UNS S31008. Certified minima are 515 MPa (75 ksi) tensile strength, 205 MPa (30 ksi) yield strength and 35% elongation. The same material answers to AISI 310, 1.4845 in Europe, SUS 310 in Japan and X15Cr25Ni20 in India. We manufacture SS 310 pipes in sizes from 1/8 inch NB to 10 inch NB and in schedules SCH 5S to SCH 80S, available as seamless and 310 stainless steel ERW pipe. A seamless option suits high-pressure uses, while welded pipes provide cost-effective performance, excellent dimensional accuracy, and reliable strength for many applications. High-temperature oxidation resistance is why engineers specify Heat Resistant Steel 310 for furnace, refinery and gasification piping instead of a chloride-resistant or titanium-stabilised grade. Every length is subjected to the hydrostatic test in accordance with ASTM A999 / ASME SA-999, or to the nondestructive electric test where specified. MLTI holds ISO 14001:2015 and ISO 45001:2018 certifications, along with BIS, IBR, EIL and PED approvals.
SS 310 Pipe Specifications
We manufacture SS 310 pipe to ASTM A312 / ASME SA-312, from 1/8 inch NB to 10 inch NB, SCH 5S to SCH 80S.
| Parameter | Value |
|---|---|
| Material specification | ASTM A312 / ASME SA-312 - Standard Specification for Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes |
| Dimensional standard | ASME B36.19M |
| Size range | 1/8 inch NB to 24 inch NB |
| Wall thickness | SCH 5S, SCH 10S, SCH 20S, SCH 40S, SCH 80S |
| Length | Single random, double random and cut length, up to 24 ft |
| Form | Seamless and welded (ERW) |
| Cross-section | Round, Square, Rectangle |
| End finish | As specified on the purchase order |
SS 310 Pipe Chemical Composition
SS 310 pipe carries 24.0–26.0% chromium with 19.0–22.0% nickel, manganese to 2.00% max and silicon to 1.50% max. That 25Cr-20Ni ratio is what separates Grade 310 from the 18/8 austenitics. The full SS 310 chemical composition appears in the table below.
| Element | Grade 310 (UNS S31000) |
|---|---|
| Carbon (C) | 0.25 max |
| Manganese (Mn) | 2.00 max |
| Phosphorus (P) | 0.045 max |
| Sulphur (S) | 0.030 max |
| Silicon (Si) | 1.50 max |
| Chromium (Cr) | 24.0–26.0 |
| Nickel (Ni) | 19.0–22.0 |
| Iron (Fe) | Balance |
SS 310 Pipe Mechanical Properties
Type 310 pipe is certified to 515 MPa (75 ksi) minimum tensile strength and 205 MPa (30 ksi) minimum yield, at 35% minimum elongation. Properties we test to ASTM A312 are represented in the table given below.
| Property | Value |
|---|---|
| Tensile strength, min | 515MPa (75ksi) |
| Yield strength, min | 205MPa (30ksi) |
| Elongation in 50 mm, longitudinal, min | 35% |
| Elongation in 50 mm, transverse, min | 25% |
Stainless Steel 310 Pipe Equivalent Grades
Designations for both variants, American and Russian, are listed in the table below.
| Country | Designation |
|---|---|
| USA (UNS) | UNS S31000 |
| Japan (JIS) | SUS 310 |
| India (IS) | X15Cr25Ni20 (IS 1570 Pt.5) |
| China (GB) | 2Cr25Ni20 |
| UK (BS) | 310S24 |
| France (AFNOR) | Z12CN25-20 |
| Russia (GOST) | 20Х25Н20С2 |
Types & Forms of SS 310 Pipes
SS 310 pipes come in multiple sizes and forms for industrial use, including seamless, welded (ERW), round, square, and rectangular options for demanding applications.
02
SS 310 Welded Pipe (ERW)
SS 310 welded pipe is formed from strip and joined longitudinally, producing thinner walls at lower cost. SS 310 ERW pipe uses electric resistance welding and undergoes eddy-current inspection.
03

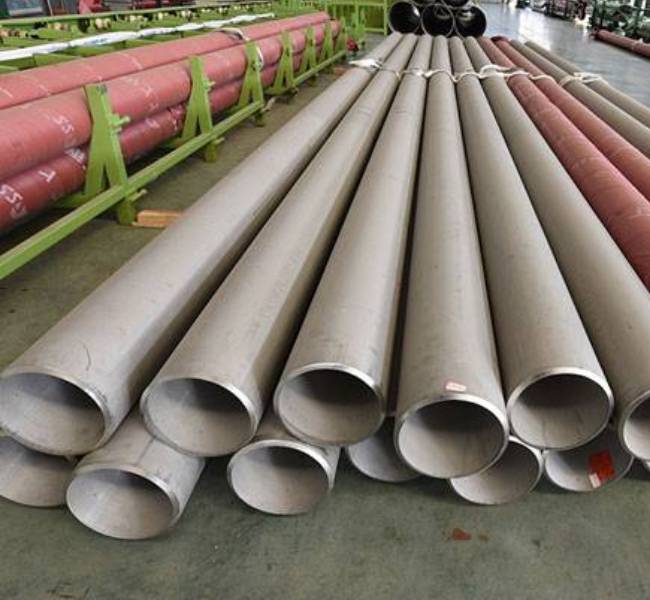

SS 310 Round Pipe
Round SS 310 pipe is the standard form for process piping, heat-transfer systems and high-temperature service. Its circular cross-section provides uniform pressure distribution, efficient fluid flow and compatibility with conventional pipe fittings, valves and flanges.
04
SS 310 Square Pipe
Square SS 310 pipe has four equal sides and a straight profile suited to structural and fabrication applications. Its geometry provides useful load distribution, while the alloy's oxidation resistance supports applications exposed to elevated temperatures and corrosive atmospheres.
05
SS 310 Rectangular Pipe
Rectangular SS 310 pipe has unequal side dimensions, providing greater flexibility when a specific width or height is required. It is commonly selected for fabricated frames, supports and enclosures where dimensional efficiency and high-temperature resistance are important.
Stainless Steel 310 Pipe Sizes
Our rolling range for 310 stainless steel pipe runs 1/8 inch NB to 10 inch NB in SCH 5S through SCH 80S, to 24 ft long. Wall and mass per metre appear in the tables below.
SS 310 Pipe Schedule Chart (SCH 5S–SCH XXS)
SS 310 pipe sizes vary by nominal bore, outside diameter, and schedule, providing clear dimensions for selection, installation, and system design.
| Nominal Bore (mm) | Inch | Outside Diameter (mm) | Sch-5S Wt (mm) | Sch-10S Wt (mm) | Sch-20S Wt (mm) | Sch-40S Wt (mm) | Sch-80S Wt (mm) |
|---|---|---|---|---|---|---|---|
| 6 | 1/8 | 10.30 | - | 1.24 | 1.50 | 1.73 | 2.41 |
| 8 | 1/4 | 13.70 | - | 1.65 | 2.00 | 2.24 | 3.02 |
| 10 | 3/8 | 17.10 | - | 1.65 | 2.00 | 2.31 | 3.20 |
| 15 | 1/2 | 21.34 | 1.65 | 2.11 | 2.30 | 2.77 | 3.75 |
| 20 | 3/4 | 26.70 | 1.65 | 2.11 | 2.55 | 2.87 | 3.91 |
| 25 | 1 | 33.40 | 1.65 | 2.77 | 3.00 | 3.38 | 4.55 |
| 32 | 1 1/4 | 42.20 | 1.65 | 2.77 | 3.00 | 3.56 | 4.85 |
| 40 | 1 1/2 | 48.30 | 1.65 | 2.77 | 3.00 | 3.68 | 5.08 |
| 50 | 2 | 60.30 | 1.65 | 2.77 | 3.00 | 3.91 | 5.54 |
| 65 | 2 1/2 | 73.00 | 2.11 | 3.05 | 4.00 | 5.16 | 7.01 |
| 80 | 3 | 88.90 | 2.11 | 3.05 | 4.00 | 5.49 | 7.62 |
| 100 | 4 | 114.30 | 2.11 | 3.05 | 4.50 | 6.02 | 8.56 |
| 125 | 5 | 141.30 | 2.77 | 3.40 | 5.00 | 6.55 | 9.53 |
| 150 | 6 | 168.30 | 2.77 | 3.40 | 6.35 | 7.11 | 10.97 |
| 200 | 8 | 219.10 | 2.77 | 3.76 | 6.35 | 8.18 | 12.70 |
| 250 | 10 | 273.10 | 3.40 | 4.19 | 6.35 | 9.27 | 12.70 |
SS 310 Pipe Weight Chart
SS 310 pipe weights vary by nominal bore and schedule, helping engineers estimate material requirements, handling loads, and transportation needs.
| Nominal Bore (mm) | Inch | Sch-5S Weight (Kg/mt) | Sch-10S Weight (Kg/mt) | Sch-20S Weight (Kg/mt) | Sch-40S Weight (Kg/mt) | Sch-80S Weight (Kg/mt) |
|---|---|---|---|---|---|---|
| 6 | 1/8 | - | 0.28 | 0.33 | 0.37 | 0.47 |
| 8 | 1/4 | - | 0.49 | 0.58 | 0.631 | 0.80 |
| 10 | 3/8 | - | 0.63 | 0.74 | 0.845 | 1.10 |
| 15 | 1/2 | 0.80 | 1.00 | 1.08 | 1.27 | 1.62 |
| 20 | 3/4 | 1.03 | 1.28 | 1.52 | 1.68 | 2.20 |
| 25 | 1 | 1.30 | 2.09 | 1.94 | 2.50 | 3.24 |
| 32 | 1 1/4 | 1.65 | 2.70 | 2.90 | 3.38 | 4.47 |
| 40 | 1 1/2 | 1.91 | 3.11 | 3.35 | 4.05 | 5.41 |
| 50 | 2 | 2.40 | 3.93 | 4.24 | 5.44 | 7.48 |
| 65 | 2 1/2 | 3.69 | 5.26 | 6.81 | 8.63 | 11.40 |
| 80 | 3 | 4.51 | 6.45 | 8.37 | 11.30 | 15.20 |
| 100 | 4 | 5.84 | 8.36 | 12.18 | 16.07 | 22.30 |
| 125 | 5 | 9.47 | 11.57 | 16.81 | 21.80 | 31.97 |
| 150 | 6 | 11.32 | 13.84 | 25.36 | 28.30 | 42.70 |
| 200 | 8 | 14.79 | 19.96 | 33.31 | 42.60 | 64.60 |
| 250 | 10 | 22.63 | 27.78 | 41.77 | 60.50 | 96.00 |
Stainless Steel 310 Pipe Industrial Applications
SS 310 pipe is used where continuous high-temperature oxidation, not chloride attack, sets the service limit. Five areas follow, starting with the temperature ceiling.
Petrochemical & Refinery Piping
Fired heaters and steam boilers in petroleum refining carry 310 pipe in support and hanger assemblies sitting in flue gas. Carburising atmospheres in reformer service attack lower-alloy piping, and chromium at 24.0–26.0% slows carbon pickup.
Furnace & Heat-Treatment Equipment
Heat-treatment plant takes SS 310 pipe into retorts, muffles, annealing covers, burner assemblies and combustion chambers. Cyclic heating spalls the scale on ordinary austenitic grades; the oxide layer on Grade 310 re-forms each cycle.
Power & Coal Gasification
Fluidised-bed coal combustors and gasifier internals run in hot, reducing, sulphur-bearing gas. We supply 310 SS Pipe for internal circuits there, where nickel at 19.0–22.0% keeps the structure austenitic through long holds.
Heat Exchangers & Thermowells
Process connection and nozzle piping around high-temperature heat exchangers is often specified in 310. Thermowells machined from 310 survive flue-gas measurement points that scale lower-chromium pockets.
Food Processing & Cryogenic Service
Bakery ovens use Stainless Steel 310 Pipes in radiant sections and conveyor furnace frames, where scale resistance keeps particulate out of the product. Liquefied-gas lines take the same grade: it stays tough at -450°F (-268°C).
Shipping and Packaging
We supply 310 stainless steel pipe in bundles with packaging selected according to the order and destination.
- Heat numbers and custom marking can be provided on request.
- Export consignments can be shipped via port on FOB or CFR terms.
- Export destinations include Brazil, Vietnam and Turkey.
- Mill test certificates are supplied with the applicable material.
Stainless Steel 310 Pipe Price
The indicative base rate for SS 310 seamless pipe in India is approximately ₹650–₹800 per kg and $7.8–$9.6 per kg, plus GST, ex-works. The 310 stainless steel pipe price we confirm depends on outside diameter, wall thickness, length, order quantity, route and specification. Seamless commands a premium over welded and ERW. Request a quote for current pricing.
Why Choose MLTI Private Limited for SS 310 Pipes?
Buyers return to Moonlight Tubes for certified material, approved grades and stock that ships on schedule. Every order is backed by documented quality, a wide size range and delivery commitments we hold to.
Quality Certification
01
IBR & EIL Approved
02
Why
Choose Us
03
Wide Range of Grades & Sizes
04
Timely Global Delivery
Stainless Steel 310 Pipe: Frequently Asked Questions
SS 310 pipe resists oxidation under mildly cyclic conditions through 2000°F (1093°C), and stays tough to -450°F (-268°C).
Grade 310 contains 24.0–26.0% chromium and 19.0–22.0% nickel, with carbon 0.25% max, manganese 2.00% max and silicon 1.50% max.
We manufacture 1/8 inch NB to 10 inch NB in SCH 5S, 10S, 20S, 40S, and 80S, to 24 ft long.
Yes: seamless, welded and ERW, across the same 1/8 inch to 10-inch NB range.
The indicative base rate for SS 310 seamless pipe in India is approximately ₹650–₹800 per kg plus GST and $7.8–$9.6 per kg, ex-works.
Weight follows from outside diameter, wall thickness and length at 7,850 kg/m³. A 4 inch NB SCH 40S length runs 16.07 kg/m.
Yes, by the common arc processes. Use AWS E310-15 electrodes or ER310 bare wire, and keep heat input controlled.
Every consignment carries a manufacturer test certificate to ASTM A312 / ASME SA-312 plus IBR certification, with PMI and ultrasonic reports on request.
