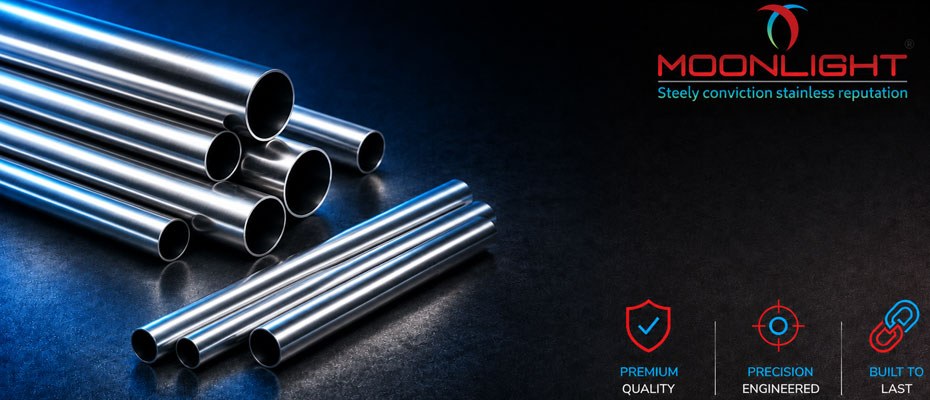

As a premier stainless steel manufacturer, supplier, and exporter, MLTI Private Limited produces SS 304L pipe at our Gujarat facility in India. Established in 2008, our plant maintains an overall annual production capacity of nearly 8,000 MT.
ASTM A312 TP304L is the reduced-carbon variant within the 18/8 chromium-nickel group. ASME SA-312 holds its carbon to 0.035% maximum, and that ceiling governs how the pipe behaves once an arc has passed over it. Due to the minimal concentration of free carbon available for chromium carbide precipitation at the grain boundaries, girth welds retain their intergranular corrosion resistance without the need for post-weld heat treatment. Chromium ranges from 18.0 to 20.0% and nickel from 8.0 to 13.0%, with no stabilising addition and no molybdenum. Certified minima under ASTM A312 / ASME SA-312 are 485 MPa tensile strength, 170 MPa yield strength and 35% elongation, taken longitudinally on annealed material.
Our 304L SS pipes programme spans 1/8" NB to 10" NB in SCH 5S, 10S, 20S, 40S and 80S, dimensioned to ASME B36.19, at lengths reaching 24 ft. Seamless, ERW and welded production sit under one roof, with square and rectangular sections from the box plant. UNS S30403 answers to 1.4306 in Europe and SUS304LTP in Japan. 304L stainless steel seamless pipe is pierced from a solid billet and drawn to size, leaving no longitudinal joint, which suits higher pressures and cyclic service. Welded 304L SS pipe is roll-formed from flat-rolled stock and seam-fused without filler metal, offering lower cost on larger diameters.
These products primarily serve chemical headers, dairy transfer lines, treated water mains, and wastewater distribution networks. Operations are backed by ISO 14001 and 45001 certifications, alongside approvals from IBR, EIL, BIS, and PED 2014/68/EU.
Purchase-order parameters for 304L stainless steel pipe cover the manufacturing standard, size envelope, schedule, and route given in the table below.
| Parameter | Value |
|---|---|
| Applicable standards | ASTM A312 / ASME SA-312 (Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes), ASME B36.19 (dimensions), ASTM A370 (Standard Test Methods and Definitions for Mechanical Testing of Steel Products), ASME B31.3 (process piping design) |
| Dimensional standard | ASME B36.19 |
| Size range | 1/8" NB to 10" NB |
| Schedule | SCH 5S, SCH 10S, SCH 40S and SCH 80S to ASME B36.19; SCH 20S to MLTI mill dimensions |
| Wall thickness | 1.24 mm to 12.70 mm, by NB and schedule |
| Length | Up to 24 ft; single random, double random and cut lengths |
| Manufacturing form | Seamless and welded (ERW) |
| Section profile | Round, square, rectangular |
| Finish | Solution annealed and pickled; mill finish |
| End type | Plain end; bevelled to order |
A dual-certified 304/304L stainless steel pipe certificate covers a single heat, meeting ASTM A312 TP304L carbon limits alongside SS 304 tensile (515 MPa) and yield (205 MPa) strength requirements.
Stainless steel UNS S30403 pipe is defined by a reduced carbon limit that suppresses chromium carbide precipitation at the grain boundaries during welding, with elemental ranges specified in ASTM A312 / ASME SA-312.
| Element | Composition (%) |
|---|---|
| Carbon (C) | 0.035 max |
| Manganese (Mn) | 2.00 max |
| Phosphorus (P) | 0.045 max |
| Sulphur (S) | 0.030 max |
| Silicon (Si) | 1.00 max |
| Chromium (Cr) | 18.0 to 20.0 |
| Nickel (Ni) | 8.0 to 13.0 |
| Iron (Fe) | Balance |
Type 304L stainless steel pipe mechanical properties are evaluated via ASTM A370 standards after solution annealing, defining the essential tensile strength, yield strength, and elongation minimums required for pressure compliance.
| Property | Requirement |
|---|---|
| Tensile strength, min | 485 MPa (70 ksi) |
| Yield strength, min | 170 MPa (25 ksi) |
| Elongation in 50 mm, min, longitudinal | 35% |
| Elongation in 50 mm, min, transverse | 25% |
ASME SA-312 records that Grades 304, 304L and 347 are accepted by ASME B31.3 for service down to −250°C (−425°F) without qualification by impact tests. Impact testing is required only where chromium or nickel content falls outside the AISI ranges, or where carbon exceeds 0.10 %.
Each equivalent for UNS S30403 pipe is matched in the table below, including EN, JIS, GB, AFNOR, and others.
| Country or System | Designation |
|---|---|
| Europe (EN / W.Nr) | X2CrNi19-11 / 1.4306 and X2CrNi18-9 / 1.4307 |
| Japan (JIS) | SUS304L / SUS304LTP |
| India (IS) | X02Cr19Ni10 |
| China (GB/T) | 022Cr19Ni10 (formerly 00Cr19Ni10) |
| France (AFNOR) | Z2CN18-10 |
| United Kingdom (BS) | 304S11 |
| Russia (GOST) | 03Kh18N11 |
Europe lists two numbers: 1.4306 carries the higher nickel band, 1.4307 the leaner.
Two decisions sit behind a 304L order: manufacturing route first, then section profile. Two routes are covered first, and three profiles close the list.
304L seamless stainless steel pipe begins with a hot-pierced billet, which is then reduced to finished dimensions on the draw bench. No seam runs along its wall. Higher-pressure chemical duty and cryogenic work draw most of the seamless tonnage produced on that line.
Roll-formed strip fuses without added filler under SA-312 requirements make 304L welded pipe more cost-efficient than seamless beyond 4-inch NB. Electric resistance welding supplies most of the tonnage. Squeeze rolls bond the faying surfaces at forging temperatures.
Every schedule in the A312 range is rolled in a round section, since ASME B36.19 recognises no other profile. A round 304L order is written by bore and schedule.
Square
Square 304L pipe comes off the box section plant against firm orders, in sizes from 12 x 12 mm through to 100 x 100 mm, on walls between 1.0 mm and 6.0 mm, to 12 metres.
Rectangular
Rectangular sizes cover 13 x 25 mm through 100 x 50 mm within the same wall band and length limit. Most of it goes into platform supports and conveyor frames.
The 304L stainless steel pipe dimensions chart below gives each outside diameter and nominal wall thickness. Schedules 5S, 10S, 40S and 80S follow ASME B36.19; Schedule 20S and the Sch-5S walls below 1/2" NB are MLTI mill dimensions supplied under ASME SA-312 §1.4.
| Nominal Bore (mm) | Nominal Bore (INCH) | Outside Diameter (mm) | Sch-5S Thickness (mm) | Sch-10S Thickness (mm) | Sch-20S Thickness (mm) | Sch-40S Thickness (mm) | Sch-80S Thickness (mm) |
|---|---|---|---|---|---|---|---|
| 6 | 1/8 | 10.30 | 1.24 | 1.24 | 1.50 | 1.73 | 2.41 |
| 8 | 1/4 | 13.70 | 1.24 | 1.65 | 2.00 | 2.24 | 3.02 |
| 10 | 3/8 | 17.10 | 1.24 | 1.65 | 2.00 | 2.31 | 3.2 |
| 15 | 1/2 | 21.34 | 1.65 | 2.11 | 2.30 | 2.77 | 3.75 |
| 20 | 3/4 | 26.70 | 1.65 | 2.11 | 2.55 | 2.87 | 3.91 |
| 25 | 1 | 33.40 | 1.65 | 2.77 | 3.00 | 3.38 | 4.55 |
| 32 | 1 1/4 | 42.20 | 1.65 | 2.77 | 3.00 | 3.56 | 4.85 |
| 40 | 1 1/2 | 48.30 | 1.65 | 2.77 | 3.00 | 3.68 | 5.08 |
| 50 | 2 | 60.30 | 1.65 | 2.77 | 3.00 | 3.91 | 5.54 |
| 65 | 2 1/2 | 73 | 2.11 | 3.05 | 4.00 | 5.16 | 7.01 |
| 80 | 3 | 88.9 | 2.11 | 3.05 | 4.00 | 5.49 | 7.62 |
| 100 | 4 | 114.3 | 2.11 | 3.05 | 4.50 | 6.02 | 8.56 |
| 125 | 5 | 141.3 | 2.77 | 3.4 | 5.00 | 6.55 | 9.53 |
| 150 | 6 | 168.3 | 2.77 | 3.4 | 6.35 | 7.11 | 10.97 |
| 200 | 8 | 219.1 | 2.77 | 3.76 | 6.35 | 8.18 | 12.7 |
| 250 | 10 | 273.1 | 3.4 | 4.19 | 6.35 | 9.27 | 12.7 |
Stainless Steel 304L weights vary by nominal bore and schedule, helping determine material requirements, handling needs, and project specifications.
| Nominal Bore (mm) | Nominal Bore (INCH) | Sch-5S Weight (Kg/mt) | Sch-10S Weight (Kg/mt) | Sch-20S Weight (Kg/mt) | Sch-40S Weight (Kg/mt) | Sch-80S Weight (Kg/mt) |
|---|---|---|---|---|---|---|
| 6 | 1/8 | 0.276 | 0.28 | 0.33 | 0.37 | 0.47 |
| 8 | 1/4 | 0.39 | 0.49 | 0.58 | 0.631 | 0.8 |
| 10 | 3/8 | 0.49 | 0.63 | 0.74 | 0.845 | 1.1 |
| 15 | 1/2 | 0.8 | 1 | 1.08 | 1.27 | 1.62 |
| 20 | 3/4 | 1.03 | 1.28 | 1.52 | 1.68 | 2.2 |
| 25 | 1 | 1.3 | 2.09 | 2.25 | 2.5 | 3.24 |
| 32 | 1 1/4 | 1.65 | 2.7 | 2.90 | 3.38 | 4.47 |
| 40 | 1 1/2 | 1.91 | 3.11 | 3.35 | 4.05 | 5.41 |
| 50 | 2 | 2.4 | 3.93 | 4.24 | 5.44 | 7.48 |
| 65 | 2 1/2 | 3.69 | 5.26 | 6.81 | 8.63 | 11.4 |
| 80 | 3 | 4.51 | 6.45 | 8.37 | 11.3 | 15.2 |
| 100 | 4 | 5.84 | 8.36 | 12.18 | 16.07 | 22.3 |
| 125 | 5 | 9.47 | 11.57 | 16.81 | 21.8 | 31.97 |
| 150 | 6 | 11.32 | 13.84 | 25.36 | 28.3 | 42.7 |
| 200 | 8 | 14.79 | 19.96 | 33.31 | 42.6 | 64.6 |
| 250 | 10 | 22.63 | 27.78 | 41.77 | 60.5 | 96 |
Stainless steel 304L pipes deliver superior corrosion resistance and weldability across demanding industrial environments, serving critical infrastructure from chemical processing and hygienic food lines to municipal water treatment and power generation.
SS 304L Pipe carries dilute acids, caustic solutions and intermediate streams between reactors, columns and heat recovery equipment. Spool pieces reach the site already welded, and the passive film holds across each joint.
Grade 304L Pipe runs product lines, CIP circuits and utility water in dairies and breweries. Caustic and acid cleaning cycles attack sensitised weld zones first, which is why hygienic specifications name the low-carbon grade.

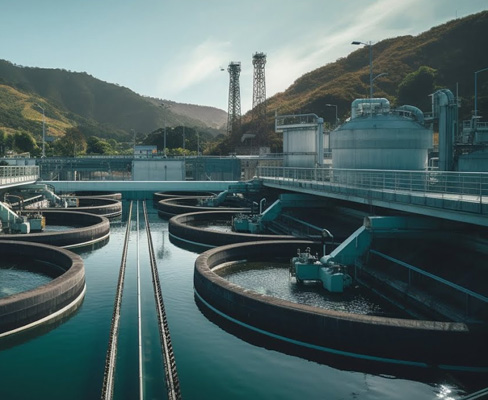

Treated water mains, sludge transfer lines and aeration headers use 304L pipe, where carbon steel would need coating and cathodic protection. Chloride content in most treated municipal supplies sits within the tolerance of 304L, though chloride levels should be confirmed for coastal or brackish sources.
Utility piping, instrument air runs and low-temperature process lines inside refineries specify 304L. In published slug-flow testing on a 90-degree long-radius elbow, AISI 1018 carbon steel eroded at 4.12 times the rate of AISI 304L stainless steel under identical conditions.
Condensate lines, demineralised water circuits and feedwater make-up piping in thermal stations use this grade. Metal temperature stays below the creep range there.
Bleach plant water lines, stock transfer piping and pigment slurry runs favour 304L. Fabrication is weld-heavy, and the media are mildly corrosive rather than chloride-bearing.
Juice transfer lines, syrup and molasses piping, and evaporator and clarifier service in sugar plants use 304L. Weld-heavy fabrication and repeated caustic cleaning make the low-carbon grade the working choice.
Purified water loops, process transfer lines and utility piping in pharmaceutical plants specify 304L, where welded joints must hold their corrosion resistance through repeated sanitisation cycles.
As a 304L stainless steel pipe supplier, consignments move by container and as break-bulk cargo.
Indian domestic welded 304L pipe runs ₹180–₹230/kg (about $1.88–$2.40/kg), whereas certified seamless material to ASTM A312 / ASME SA-312 runs ₹290–₹325/kg (about $3.03–$3.40/kg). Across the wider export market, FOB prices span $1.45–$3.90/kg (about ₹139–₹373/kg), depending on manufacturing type, surface finish, minimum order quantity and origin. Dollar figures are converted at ₹95.7 to the US dollar in August 2026.
Daily nickel fluctuations require real-time per-kilogram quotes for 304L stainless steel pipe, making fixed price lists obsolete. 304L stainless steel pipe price depends on the following factors: bore, wall thickness, schedule, length, volume, shipping route, and certification.
Reach out to our team with your project dimensions and order volume for a fast, official price estimate.
Buyers return to Moonlight Tubes for certified material, approved grades and stock that ships on schedule. Every order is backed by documented quality, a wide size range and delivery commitments we hold to.
The L stands for low carbon, marking a ceiling of 0.035% against the 0.08% allowed in the standard grade.
Order 304L pipe where the line is welded and left unannealed, and 304 pipe where strength governs the wall.
304L pipe carries a modest premium, since the melt needs tighter carbon control. A dual-certified heat closes it.
SS304L pipe serves chemical headers, dairy lines, treated water mains, refinery utility piping and pulp mill runs.
Seamless 304L pipe has no longitudinal joint, having been pierced from a billet, whereas welded pipe begins as a strip.
304L pipe isn't suitable for seawater because chloride at that concentration causes pitting and crevice attack.
